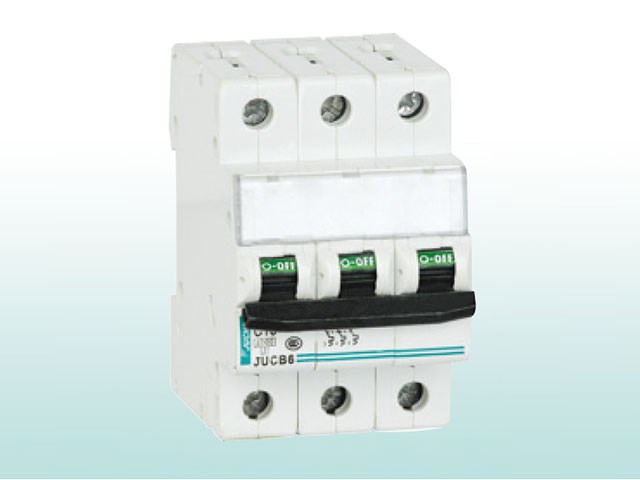

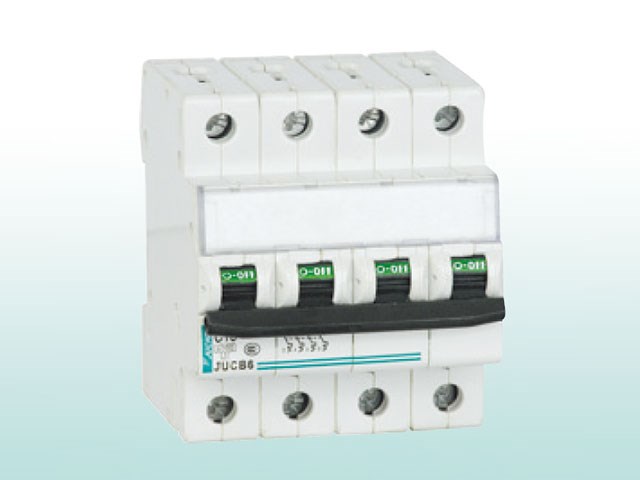

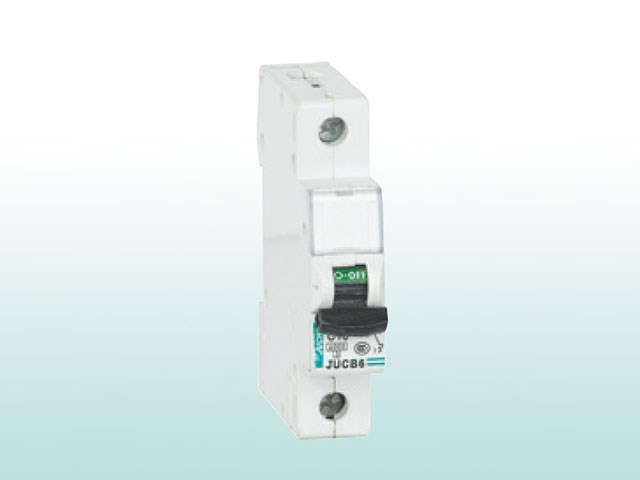

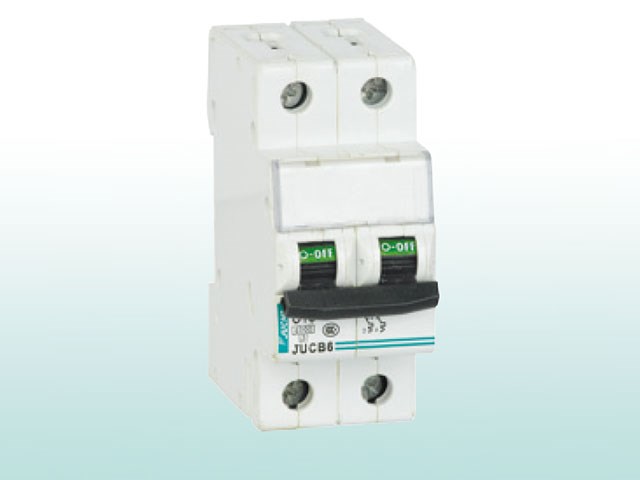

JUCB6 Mini Circuit Breaker
ApplicationJUCB6 mini circuit breaker is mainly suitable for overload and short circuit protection .It is especially used for illumination and distribution in industry and commerce ,etc .It has pleasing outlook & high breaking capacity , reliable performance ,high inflammable resistance and shock resistance for long service life ,It is within the circuit of AC 50/60Hz ,rated voltage of single pole up to 240V ,two ,three or four pole up to 415V.It can also be used for an...
Application
JUCB6 mini circuit breaker is mainly suitable for overload and short circuit protection .It is especially used for illumination and distribution in industry and commerce ,etc .It has pleasing outlook & high breaking capacity , reliable performance ,high inflammable resistance and shock resistance for long service life ,It is within the circuit of AC 50/60Hz ,rated voltage of single pole up to 240V ,two ,three or four pole up to 415V.It can also be used for an unfrequent change over of the circuit and illumination under normal condition.

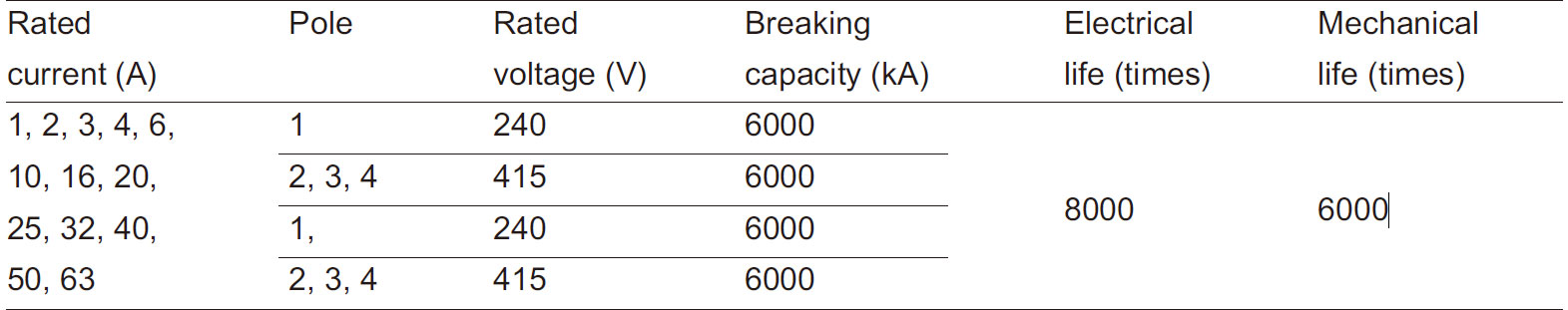

Specification

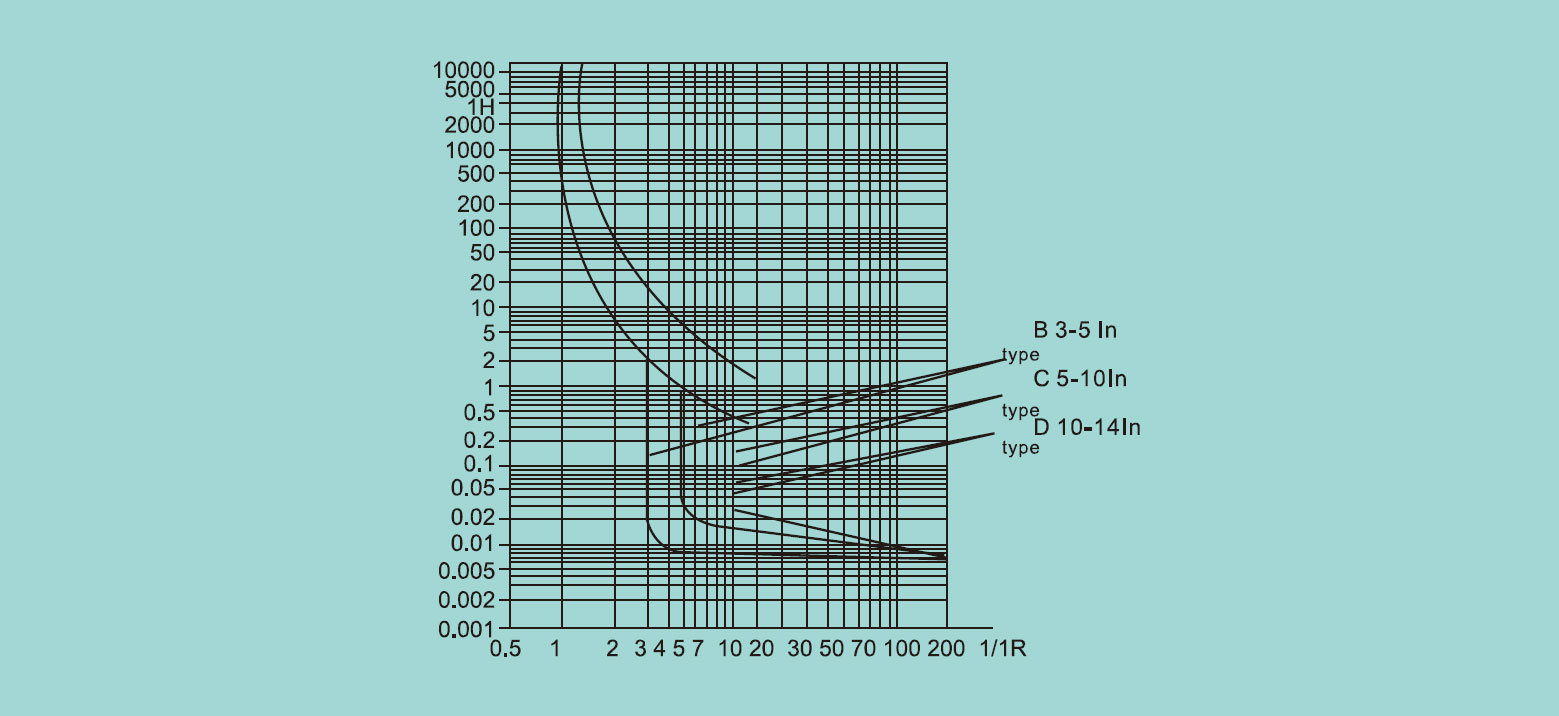

Characteristic curve

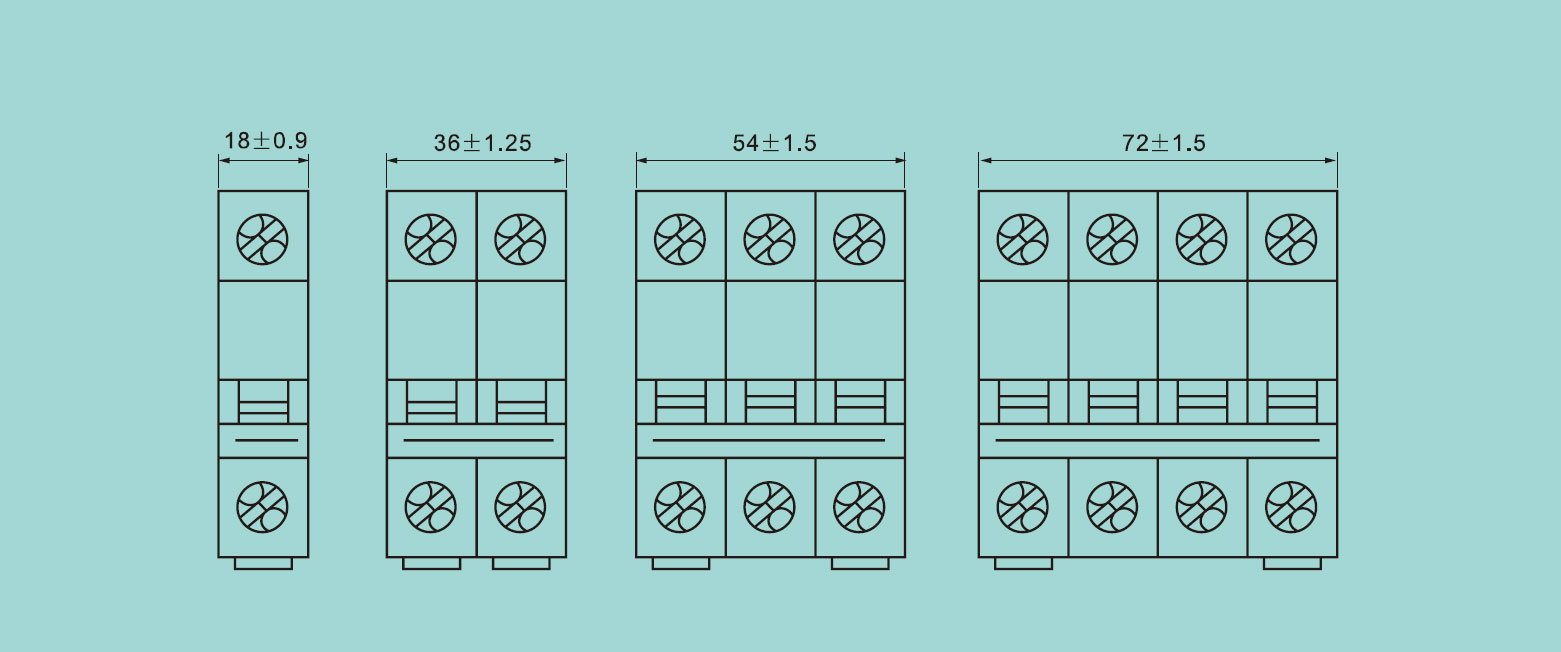

Dimensions
