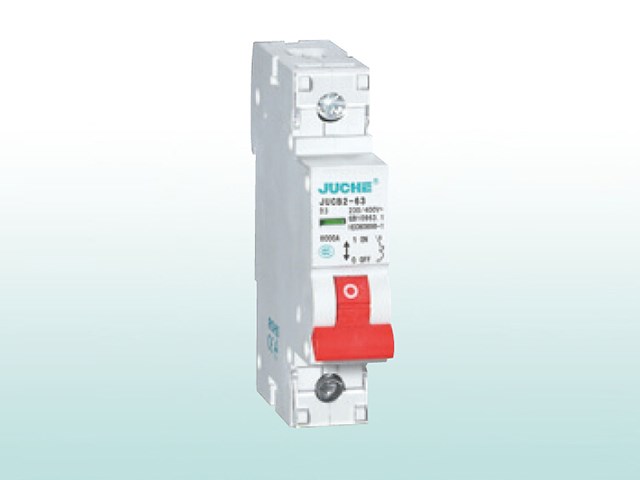

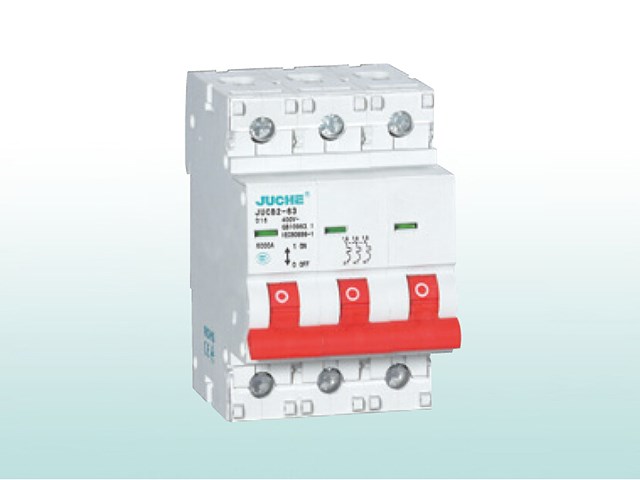

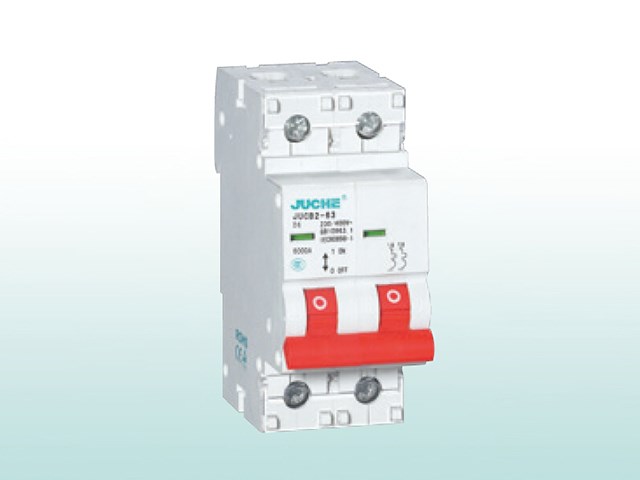

JUCB2 Mini Circuit Breaker

Application

JUCB2 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system .The product is novel in structure ,light in weight,reliable and excellent in performance . It has high breaking capacity, can trip quickly and it’s installation uses with guide, it’s case and items are adopted with high fire-resistant and shockproof plastics .The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case .This product comply with GB10963, IEC898, BS3871.

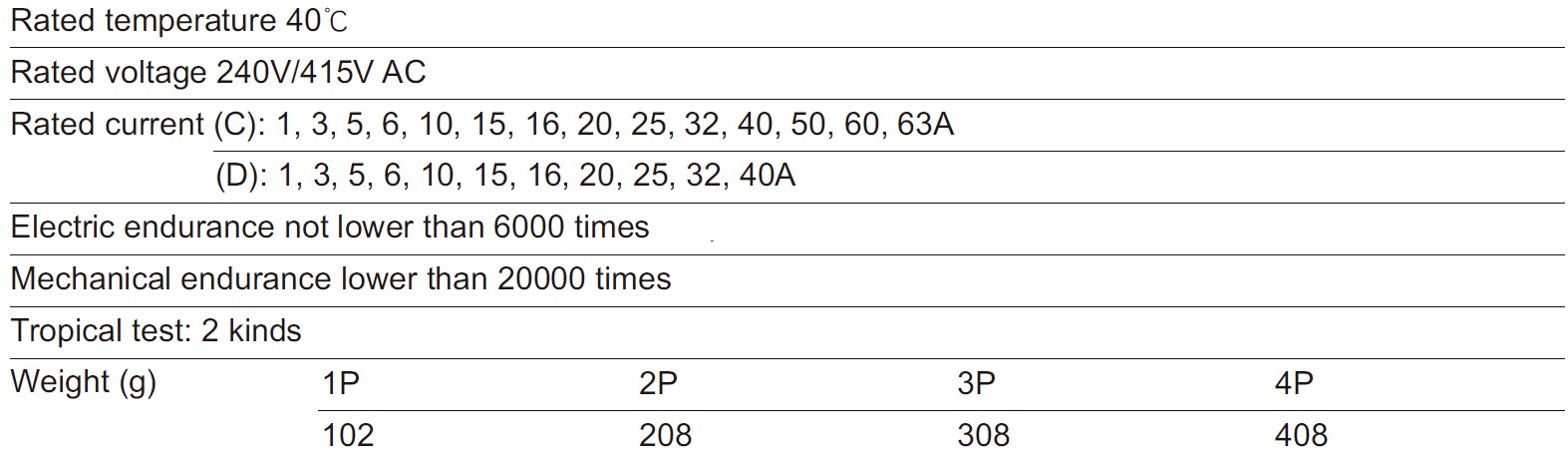

Specifications

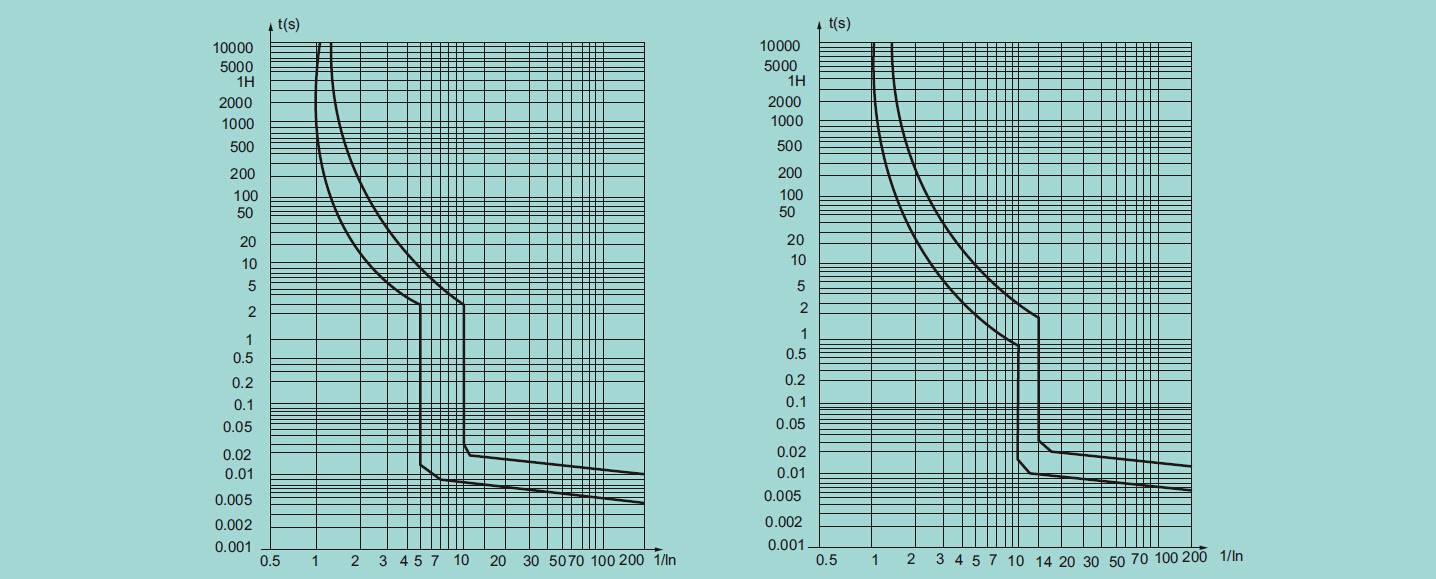

Characteristic Curve

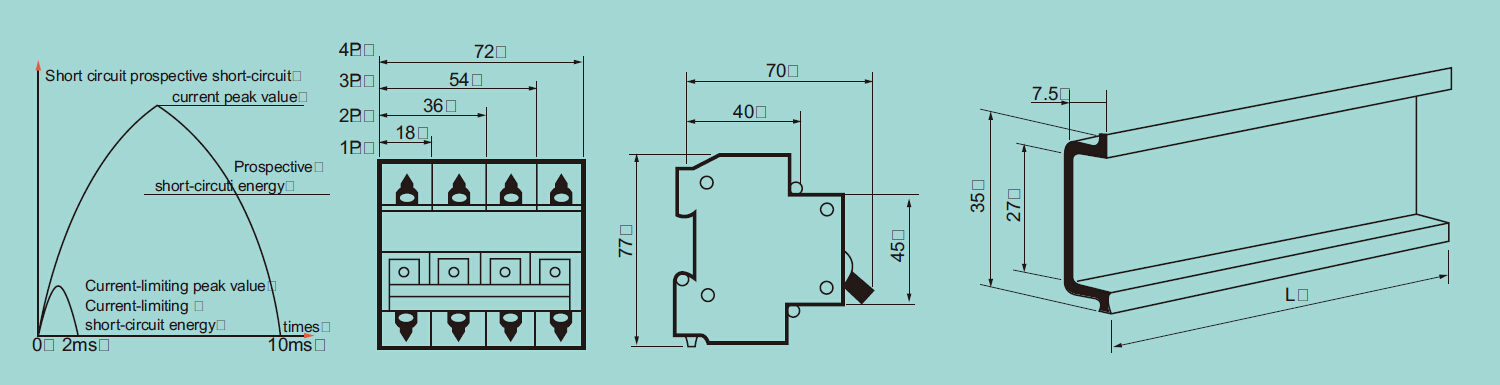

Dimensions
