Power Factor Regullator

General description

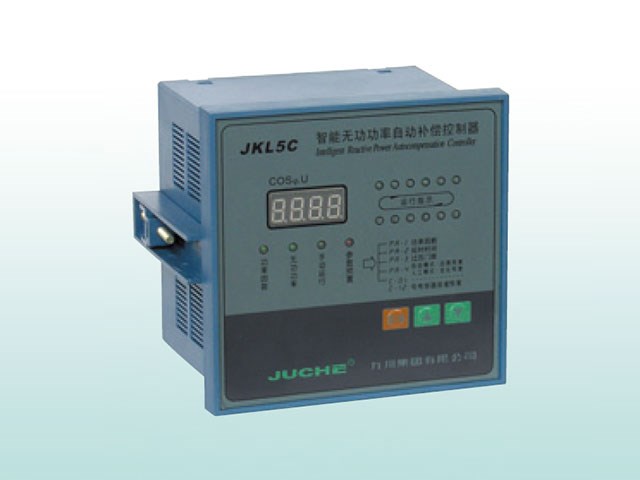

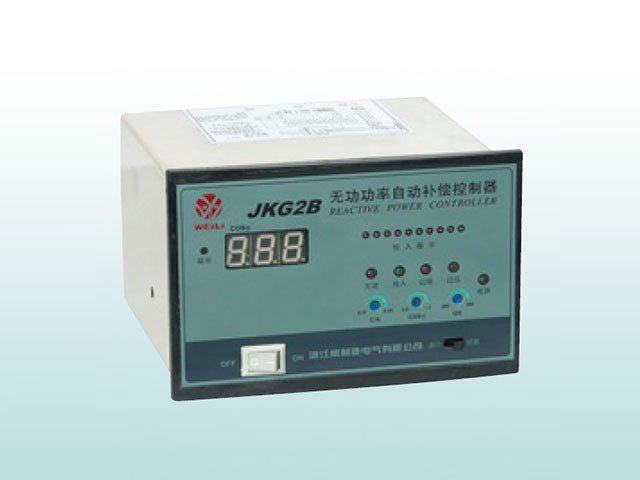

The reactive power auto-compensation controller is the auxiliary product for low voltage capacity screen. According to the different demands of users, the company developed successively the JKG2B, JKLGF. ZKW-II, JKL1B, JKL5CF, JKL2CJ and so on three types of intelligent series of controllers; Number of the circuits controlled is 4,6,8,10, and 12 available. All of these devices are controlled by the microcomputer. With the advanced techniques, they have complete range of functions, rather strong anti-interference capability, stable and reliable operation, accurate compensation, and novel appearance, so they are the preferred products of capacity screen manufacturers.

Service conditions

1.Altitude not higher than 2500m.
2.Ambient temperature-50~+40.
3.Relative humidity50%, at 40and90% at 20.
4.NO corrosive gas, inductive dust, and inflammable and explosive mediumsin the ambient environment.
5.The mounting position should be protected against violent vibration.

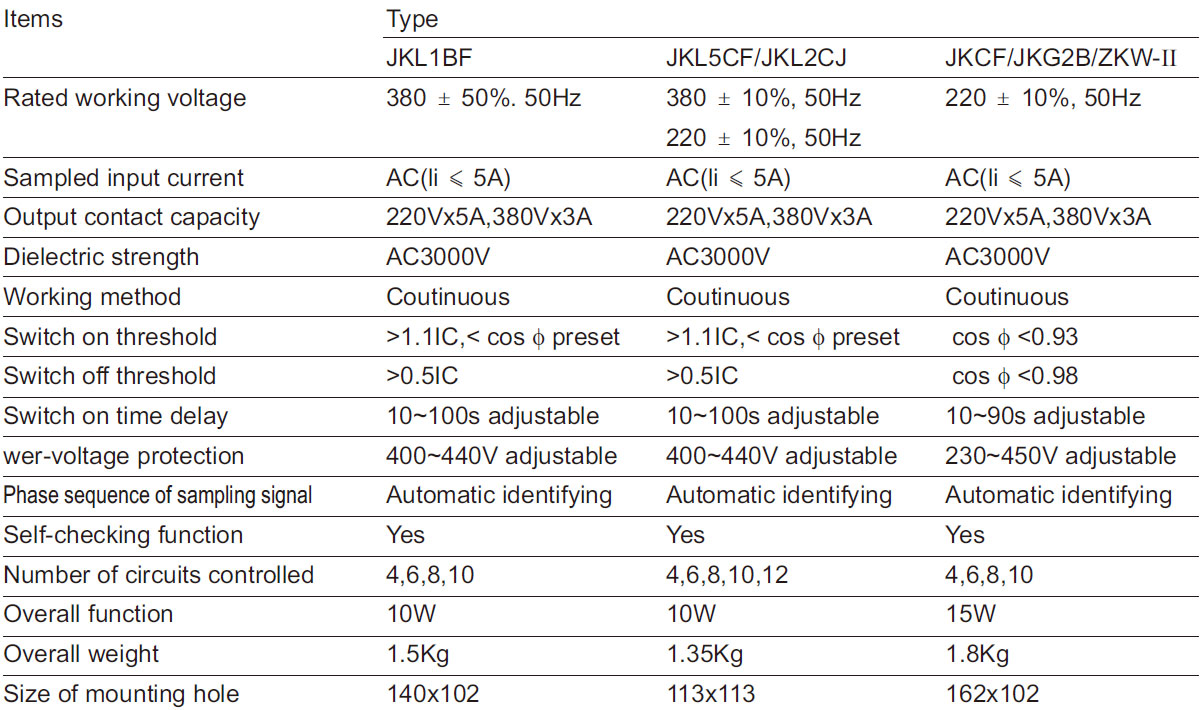

Main Technical Characteristics
