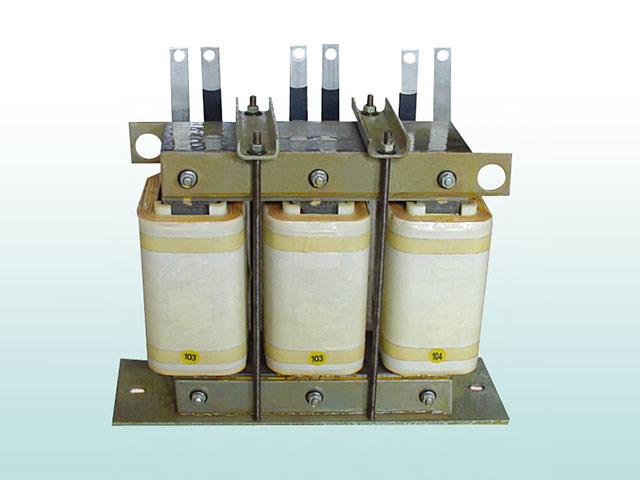

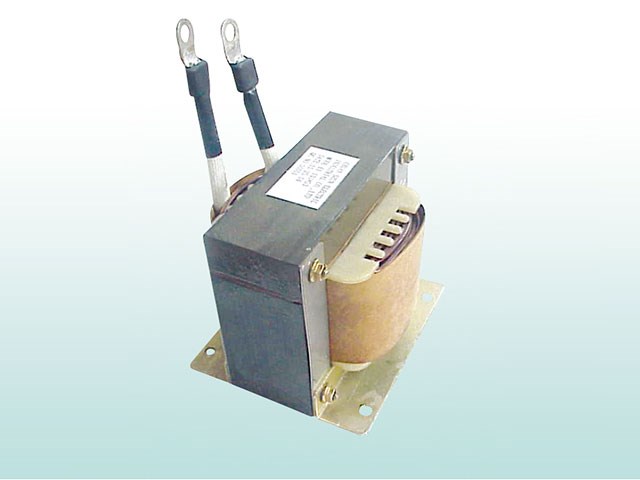

Rectifying Reactor

Technical parameters

Rated current : 5-400A
Voltage drop: 2, 4, 6, 8, 12%
Tolerance of inductance value: 5%
Rated line voltage: <1000V
Rated frequency: 50/60Hz
Cooling mode: natural air or forced air cooling
Ambient temperature -5 to +40
Insulation system: B, F, H
Use: on rectifying power supplies, and power supplies of spot welder, high-power UPS, EPS, various large-scale industrial equipment and communication equipment.

Application

Rectifying reactor is used to reduce the harmonic wave in line current, limit short-circuit current, enables the wave crest and wave trough of line voltage to be attenuated, consequently, it prolongs service life of semiconductor device, limits conversion current during switching moment.
