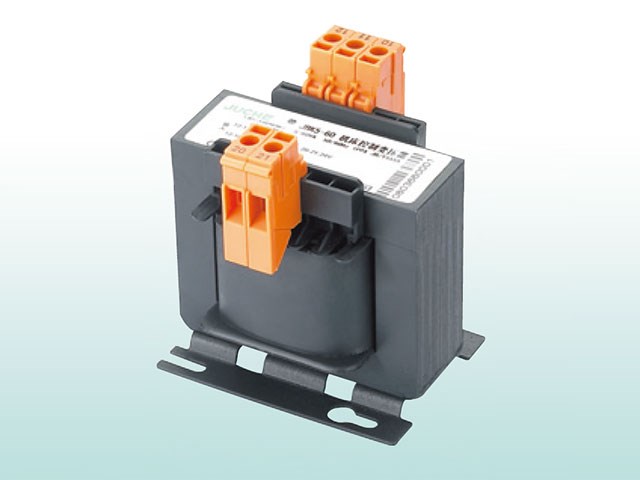

JBK5 Series Machine Tool Control Transformer
ApplicationJBK5 series machine tool control transformers apply to be used as control power, working light of general electric appliance and mechanical equipment of various trades, and power of signal lamp with AC50-60Hz, input voltage doesn’t exceed 1000V, output voltage doesn’t exceed 600V. Our transformers provide optimal protection through high permissible ambient temperatures up to 40 or 55, a high short-time rating in the case of control transformers, fuseless construction and due...
Application
JBK5 series machine tool control transformers apply to be used as control power, working light of general electric appliance and mechanical equipment of various trades, and power of signal lamp with AC50-60Hz, input voltage doesn’t exceed 1000V, output voltage doesn’t exceed 600V. Our transformers provide optimal protection through high permissible ambient temperatures up to 40 or 55, a high short-time rating in the case of control transformers, fuseless construction and due to its safety standard “Safety inside” to EN 61558.

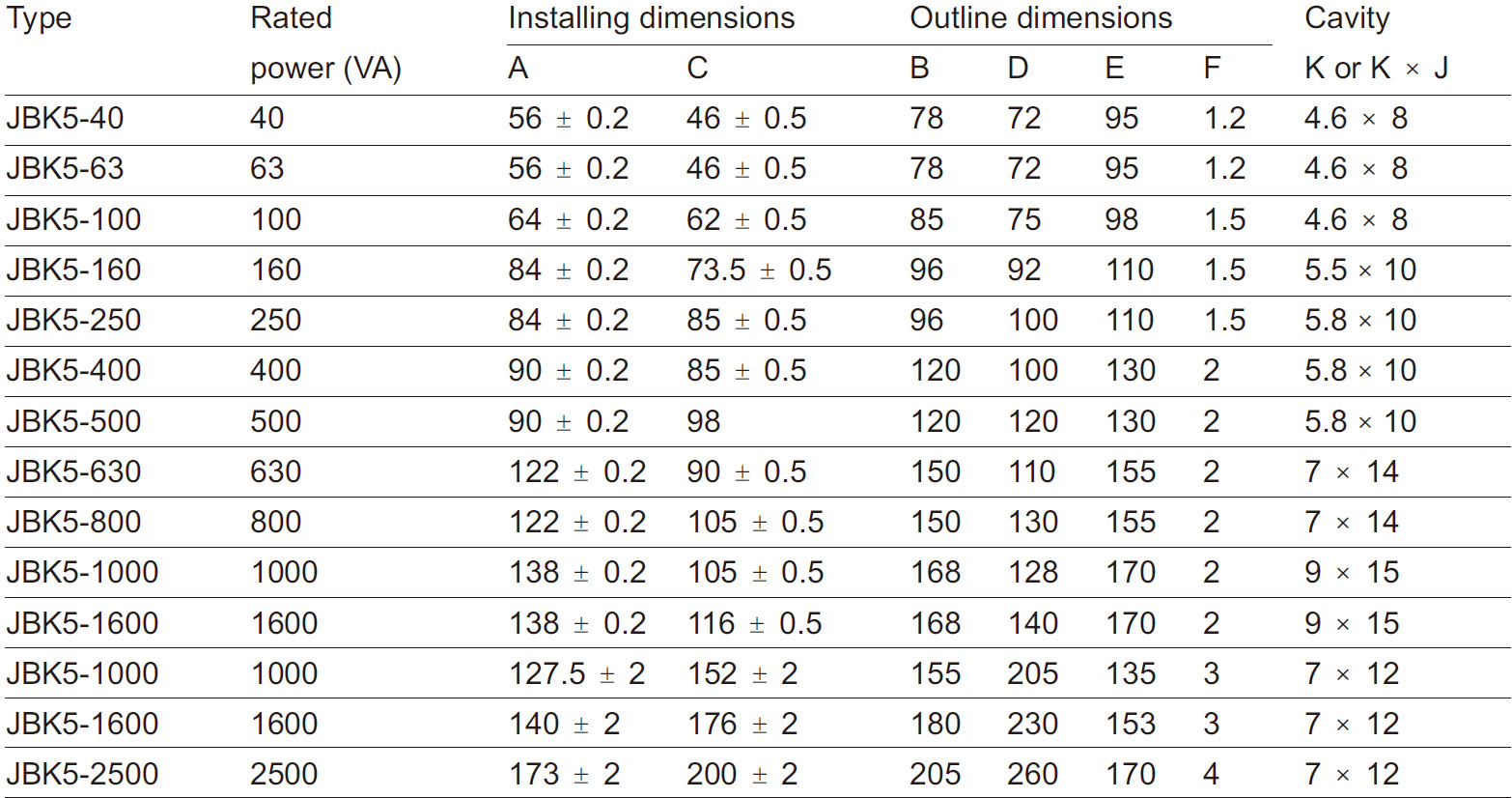

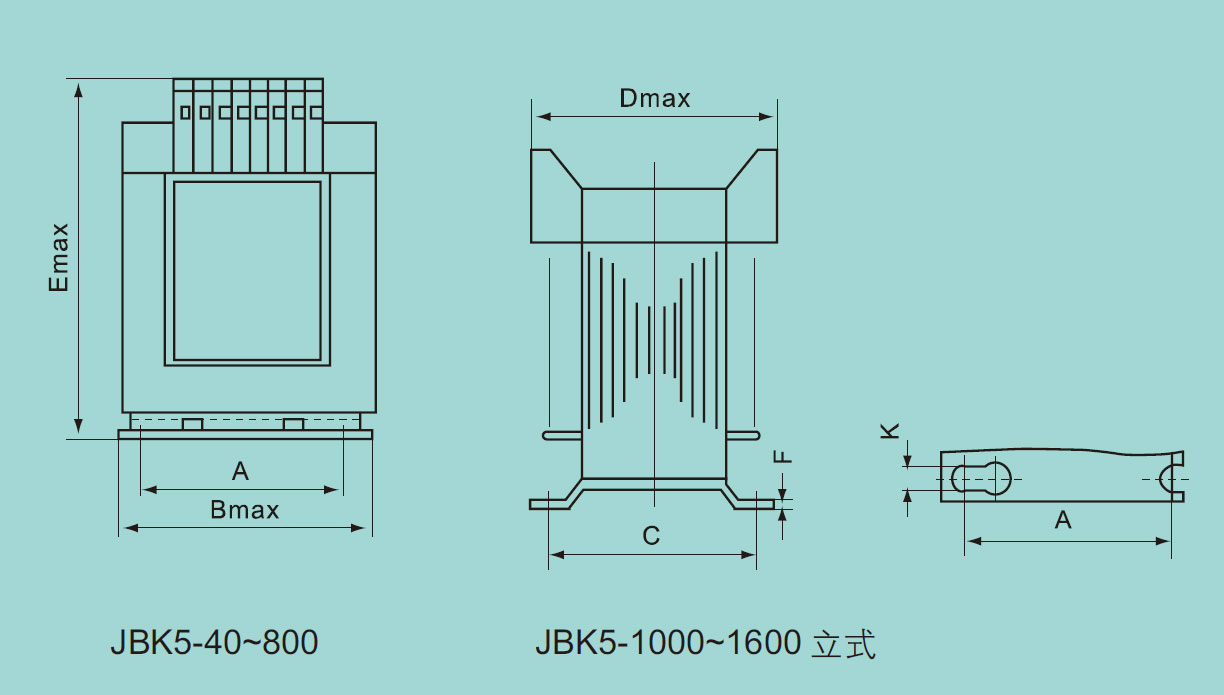

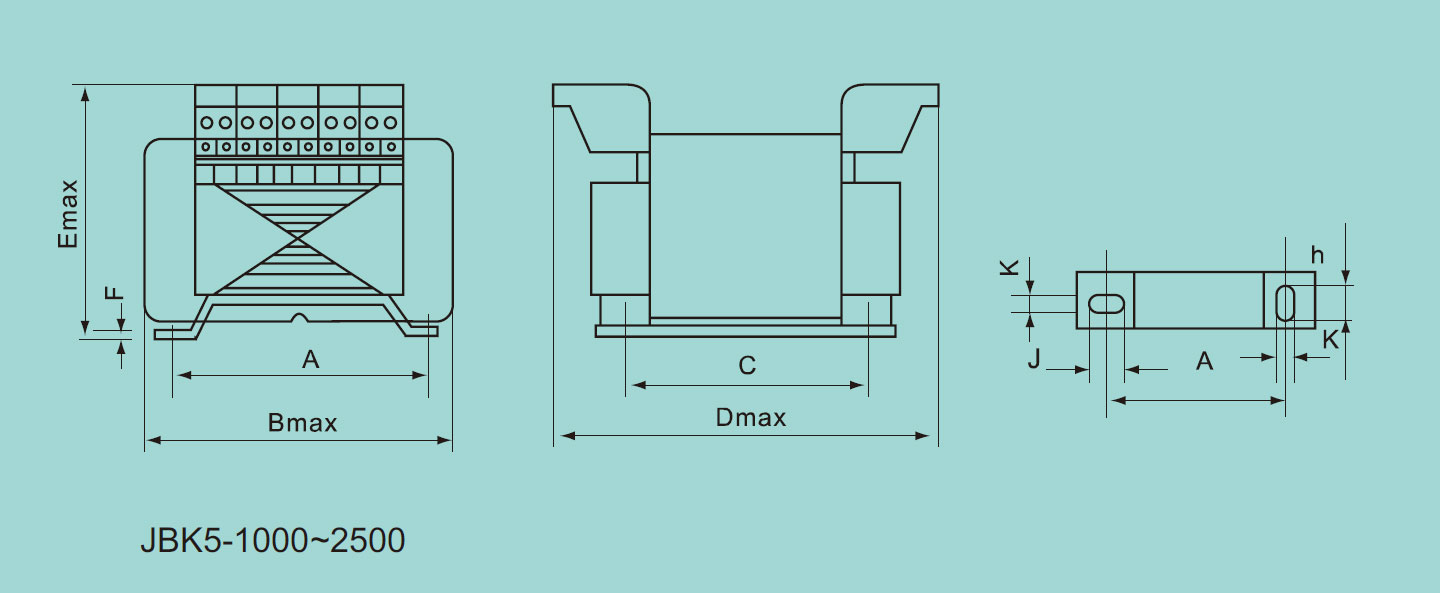

Overall dimension
Overall dimension
