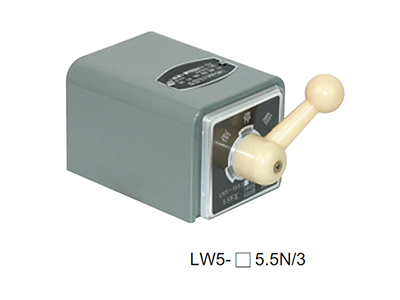

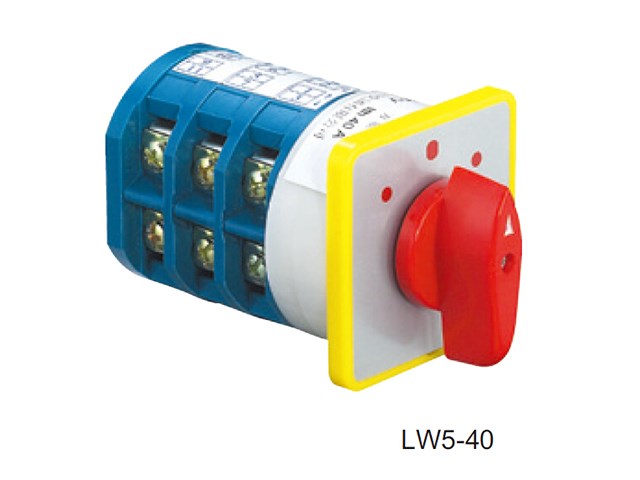

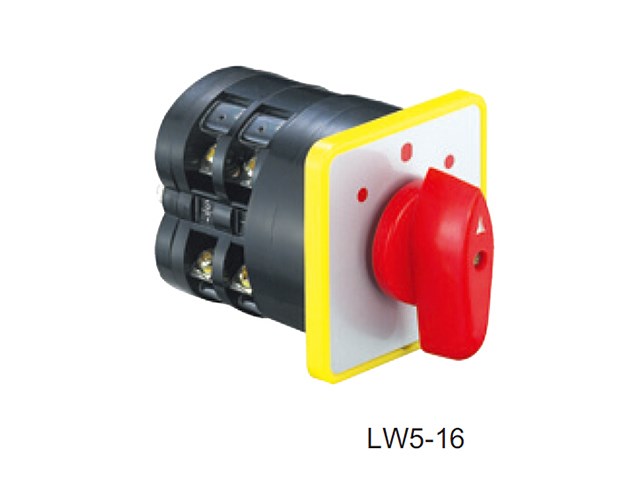

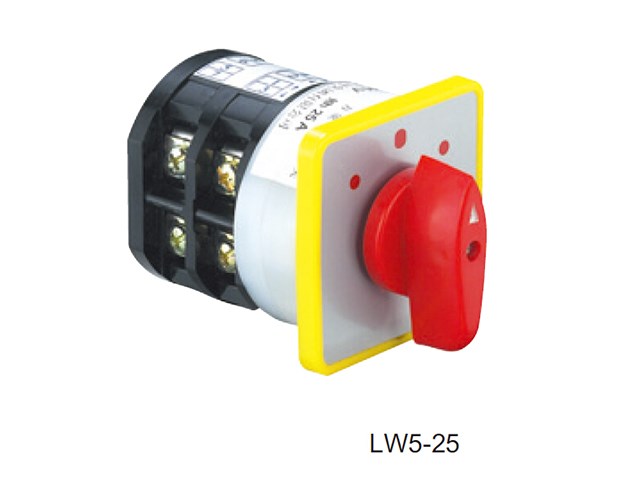

LW5 Series Rotary Switches

1 Application

1.1 LW5 series rotary switch is suitable for circuits of AC50HZ, rated voltage up to 500V, and DC voltage up to 440V, used for changeover of electric control circuits (electromagnetic coil, electric measuring instrument, servo motor, etc), it also can be used to control three-phase squirrel-cage
asynchronous motor up to and including 5.5KW, both reversible changeover and speed change are available.
1.2 The products are in conformity with standards GB14048.3, GB14048.5, IEC60947-3 and IEC60947-5.

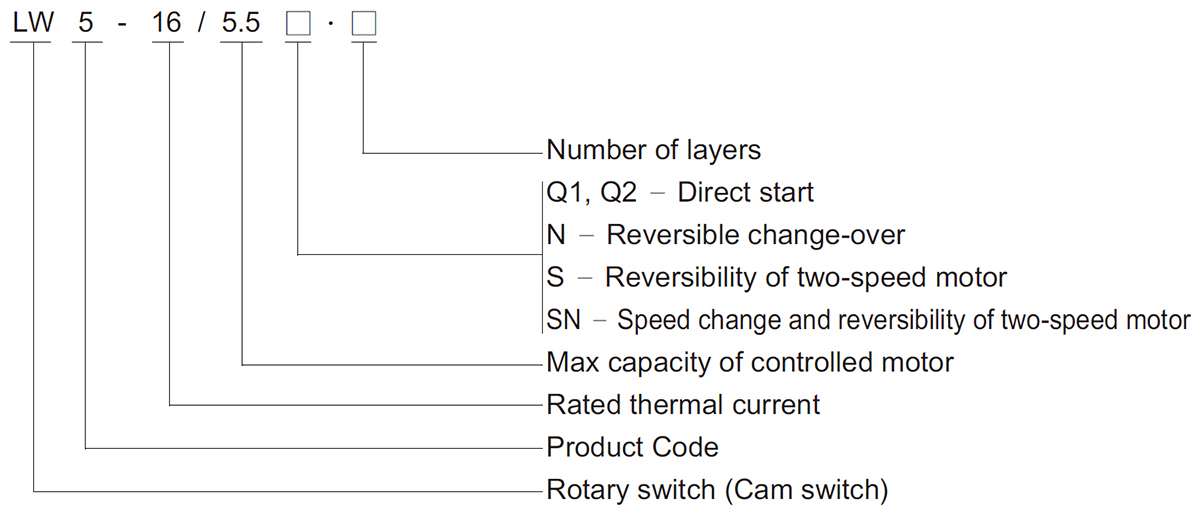

2 Model description

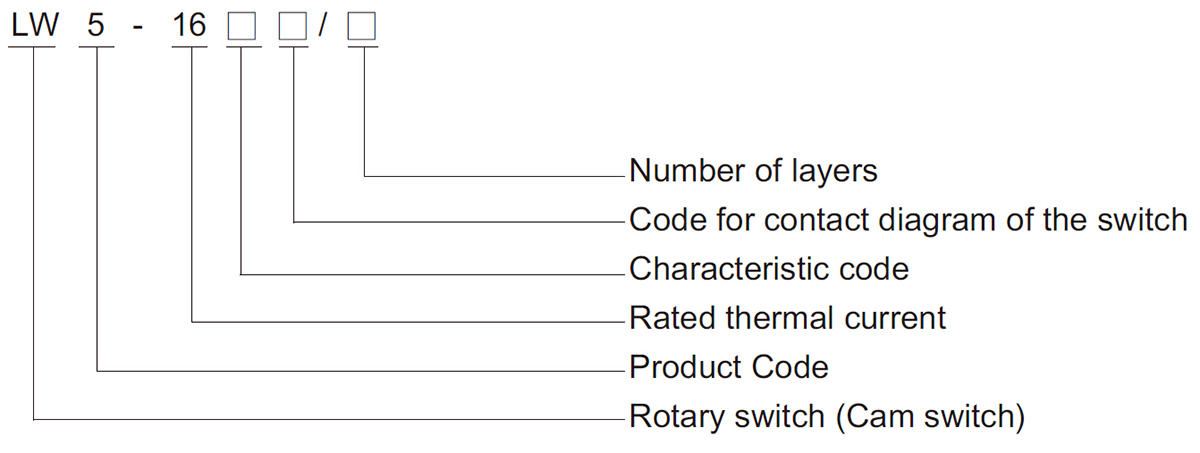

2.1 Model description of change-over switch for master command control

2.2 Model description of change-over switch for direct motor control

3 Classification

3.1 Classified by application: Master control and Direct control motor
3.2 Classified by operation: Limited movement and Spring return
3.3 Classified by handle: turnbuttom and knob

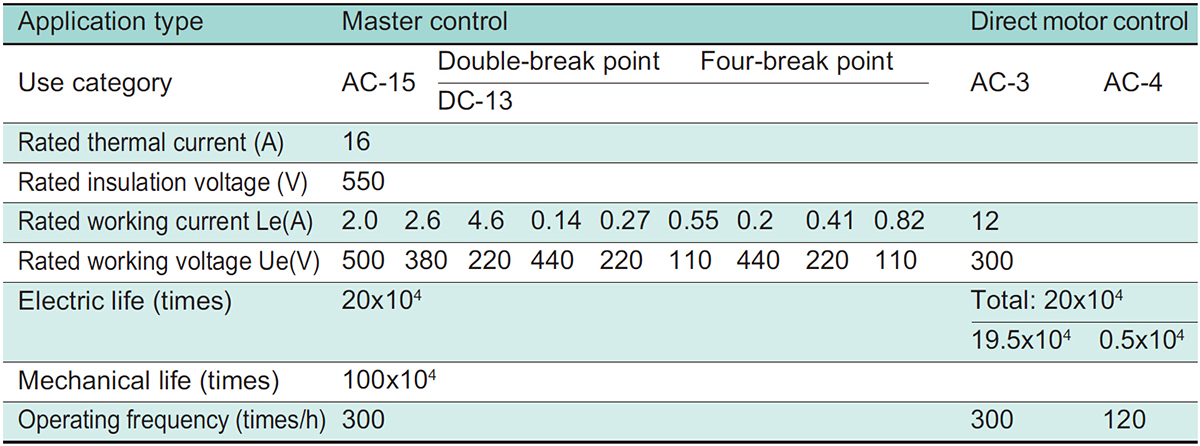

4 Technical parameters

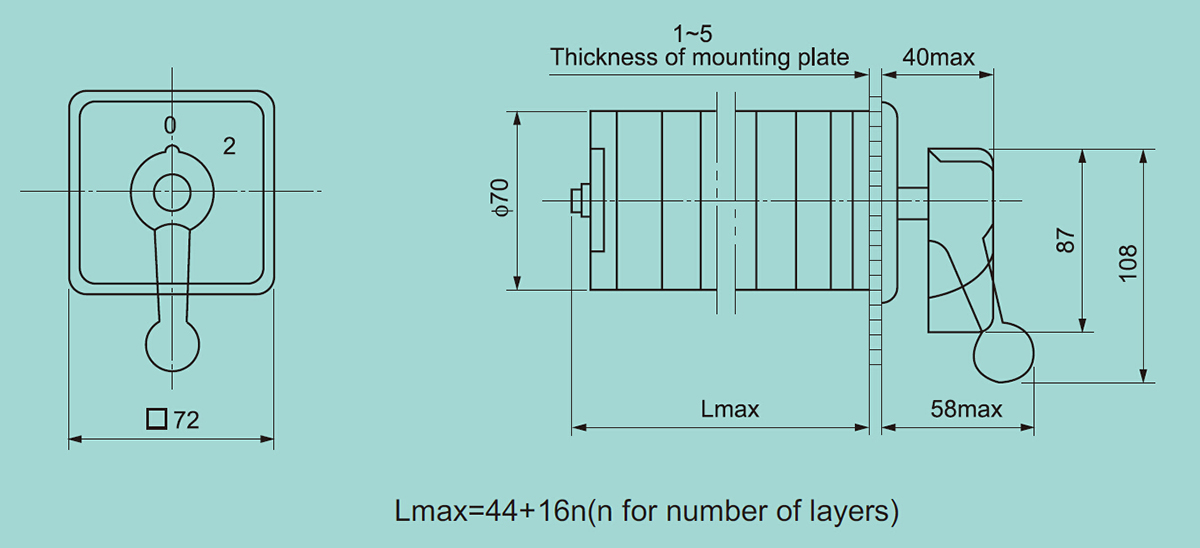

5 Installation & dimensions
