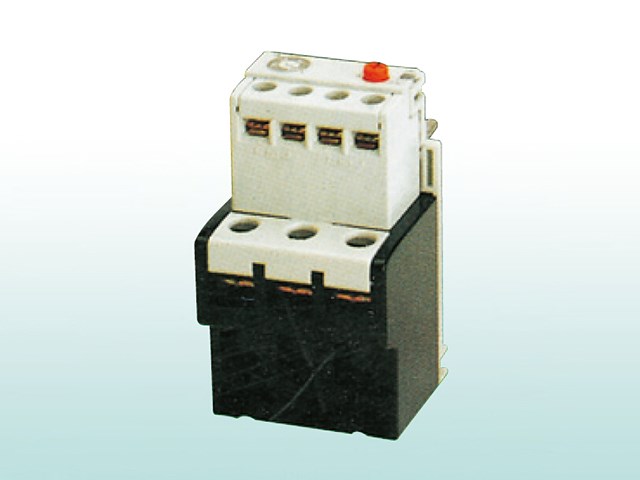

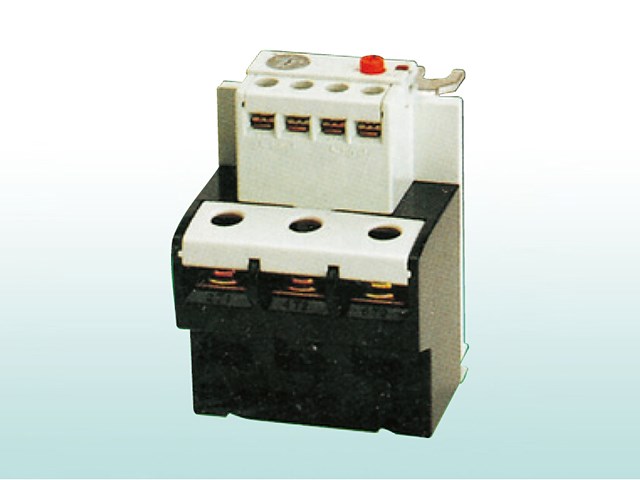

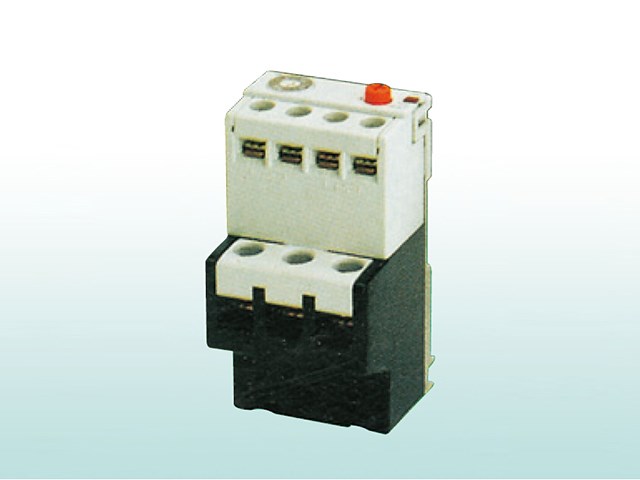

TH Thermal Relays
ApplicationThe TH protect the motors Overload, Locking, Open phase (differential).Characteristicsa. Direct mounting structure The TH is mounting directly to the Magnetic Contactors without addition brackets.(Applied model: GTH - 22,40,85)b. Safety cover The finger proof safety cover prevent careless touch of electric conductor (Applied model:GTH-22,40,85)c. Separation of power part and operation part The main circuit and the operation part are separately designed and the...
Application
The TH protect the motors Overload, Locking, Open phase (differential).
Characteristics
a. Direct mounting structure The TH is mounting directly to the Magnetic Contactors without addition brackets.(Applied model: GTH - 22,40,85)
b. Safety cover The finger proof safety cover prevent careless touch of electric conductor (Applied model:GTH-22,40,85)
c. Separation of power part and operation part The main circuit and the operation part are separately designed and the operation part is commonly used in GTH-22,40,85
d. Easy operation

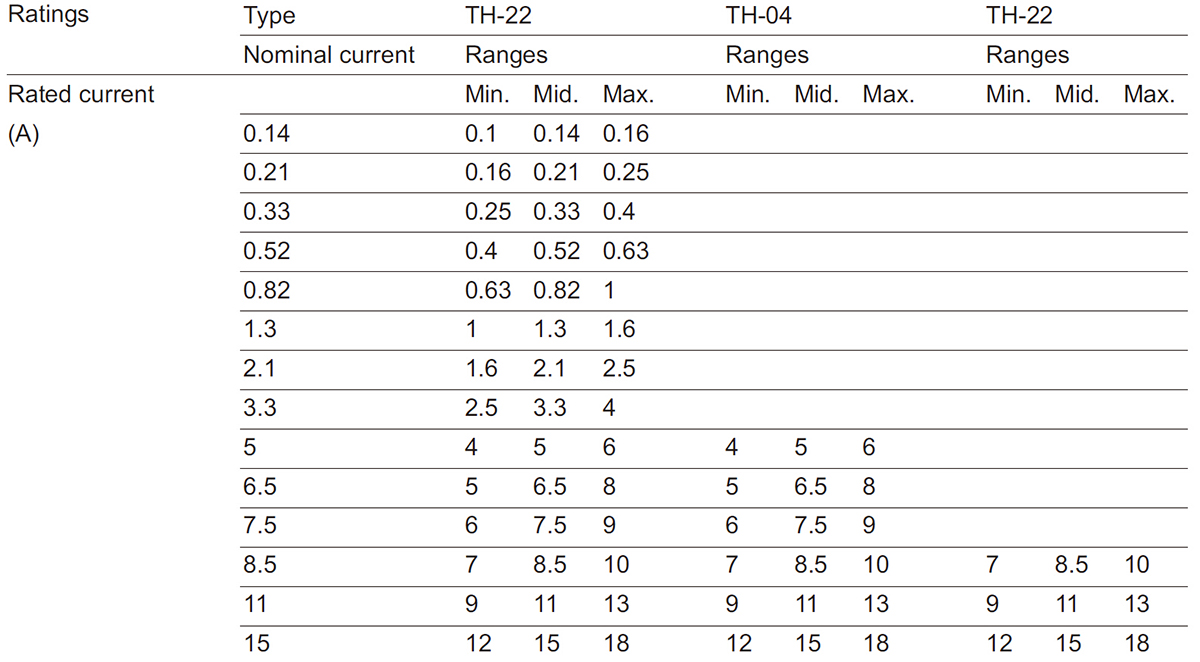

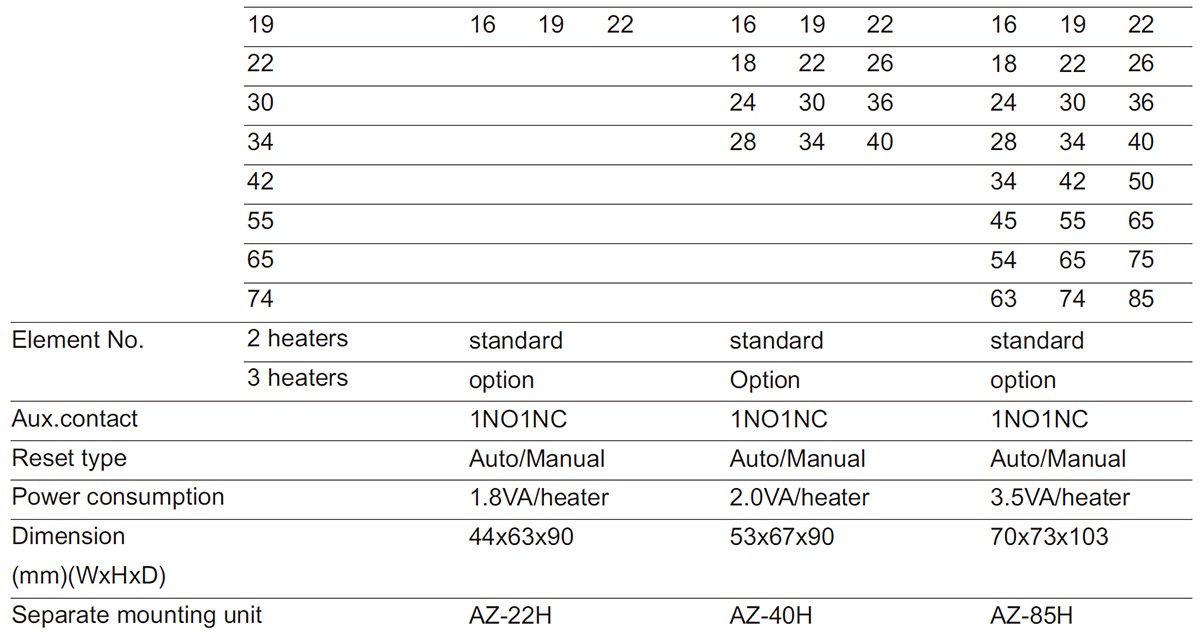

Types and ratings
