Circuit breaker

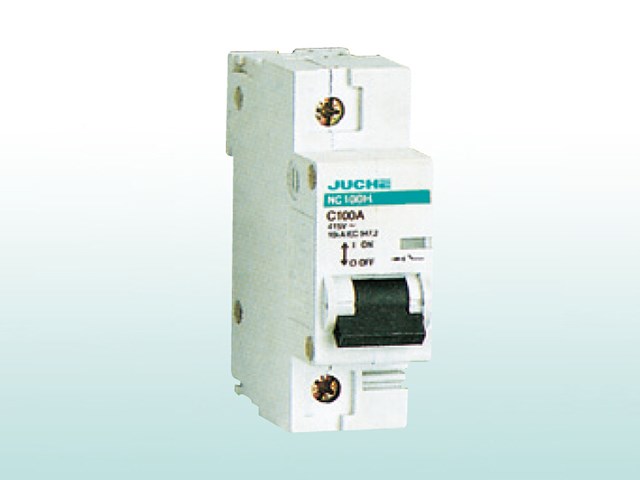

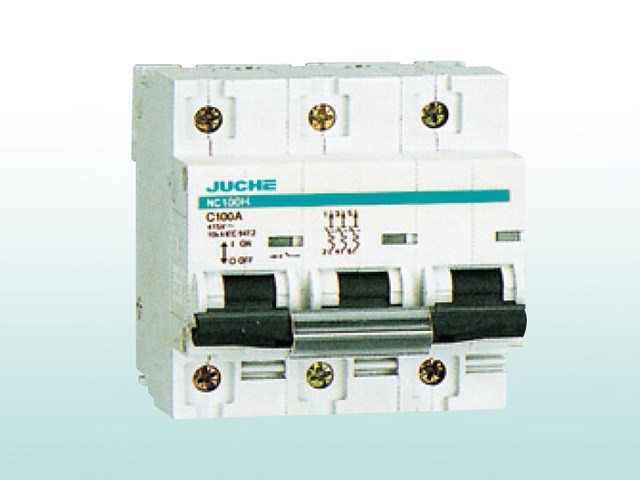

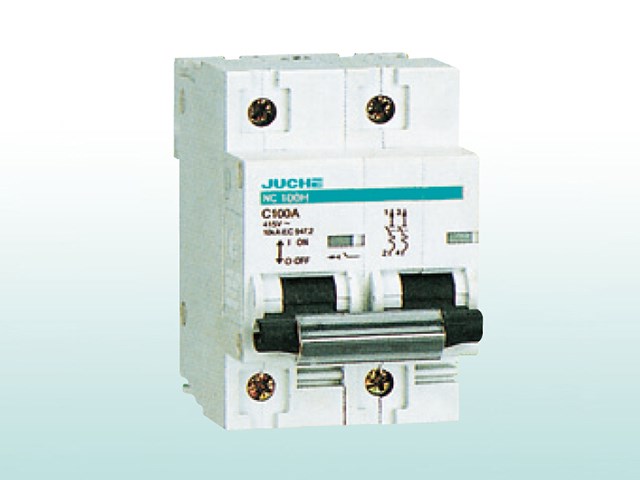

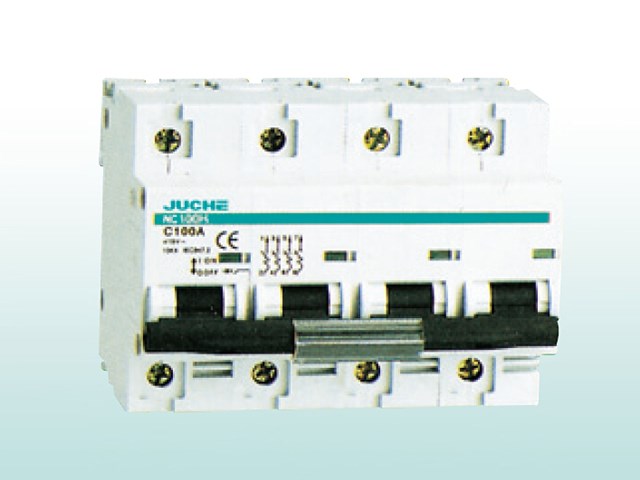

DZ47-100(NC-100H) Mini Circuit Breaker

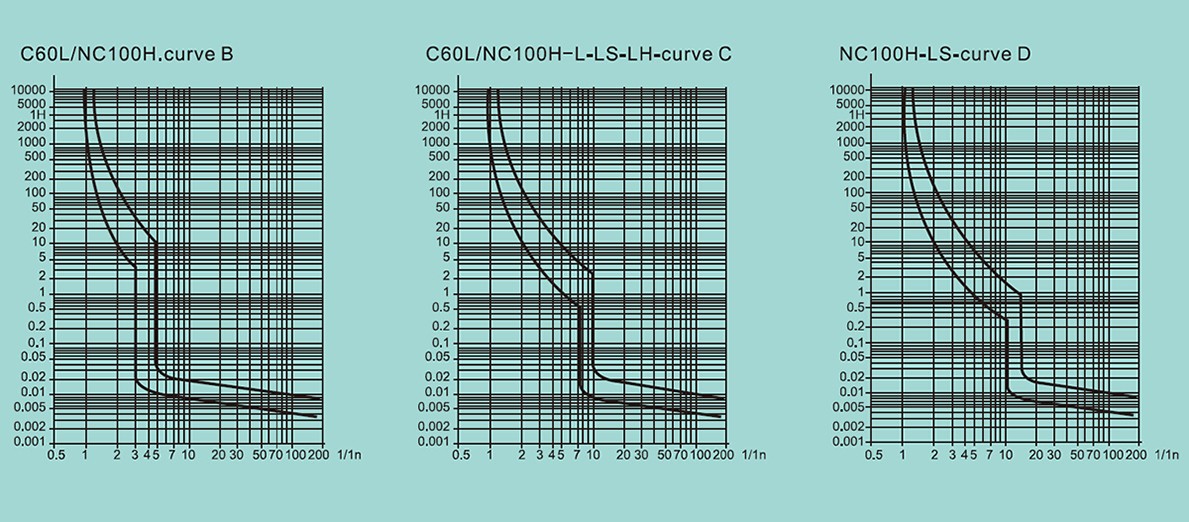

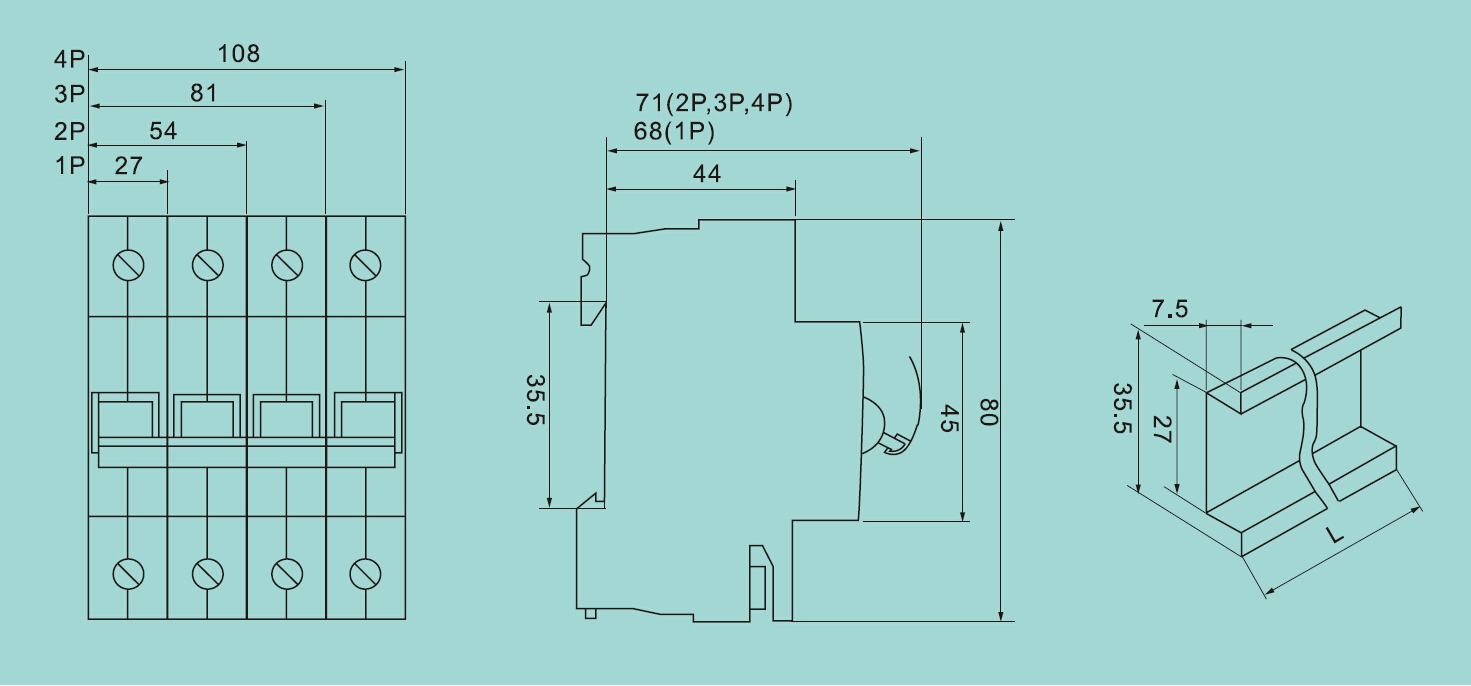

ApplicationDZ47-100(NC100H) high breaking capacity circuit breaker is used for AC 50Hz (60Hz) ,single pole 240V, 2,3,4 poles 415V, for protecting the circuit that overload and short circuit may take place. It can be used in lighting and electric motor distribution system. Meanwhile it is applicable to an unfrequent switch over the electric apparatus and lighting circuit under normal condition.Technical SpecificationTripping CurveConfiguration and Mounting Dimensions

Product Details

Application

DZ47-100(NC100H) high breaking capacity circuit breaker is used for AC 50Hz (60Hz) ,single pole 240V, 2,3,4 poles 415V, for protecting the circuit that overload and short circuit may take place. It can be used in lighting and electric motor distribution system. Meanwhile it is applicable to an unfrequent switch over the electric apparatus and lighting circuit under normal condition.

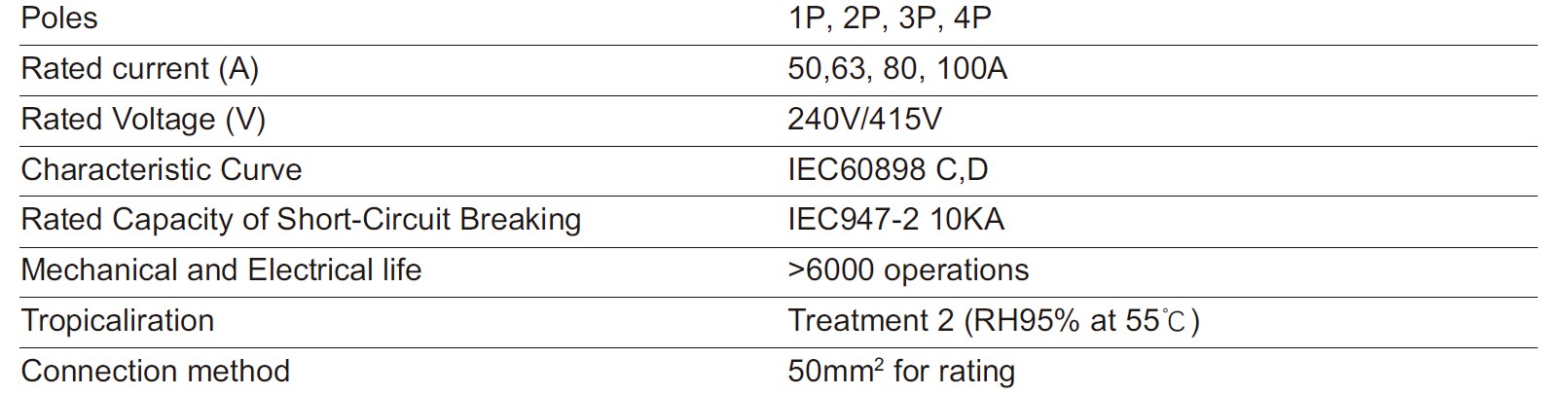

Technical Specification
